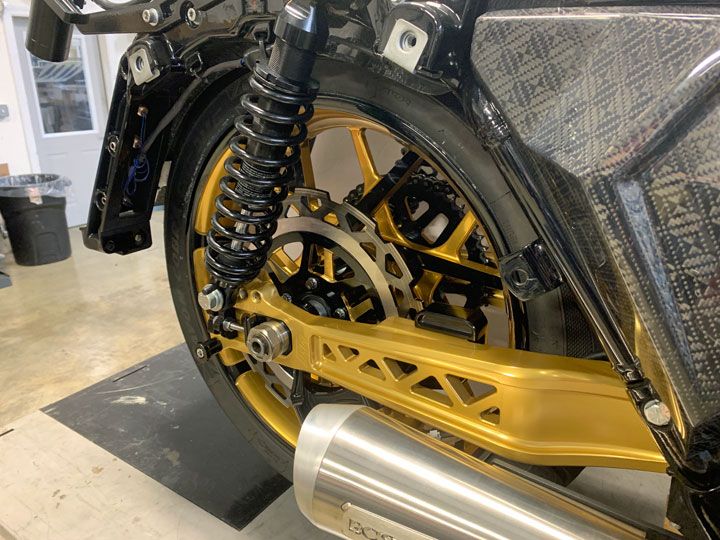

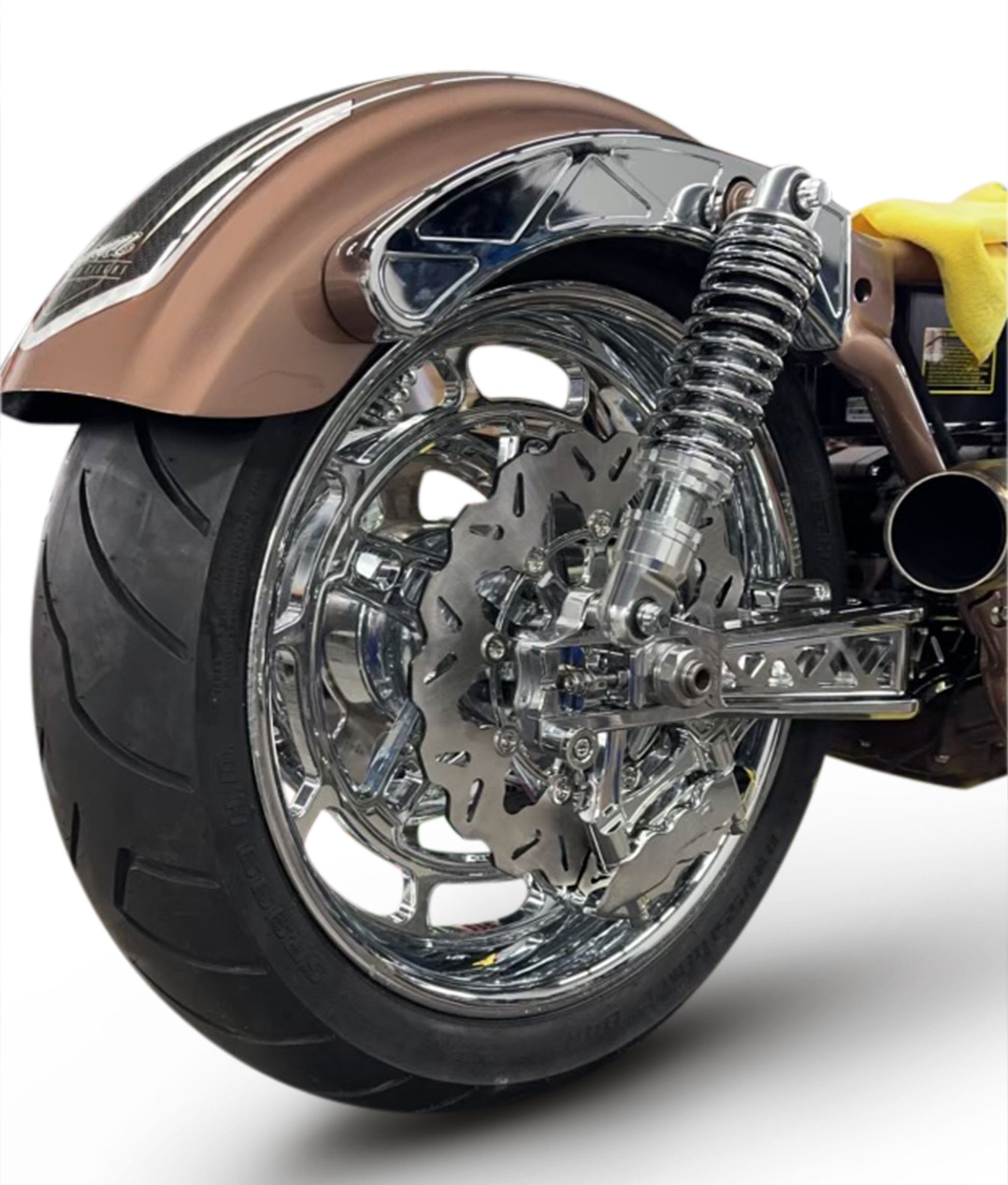

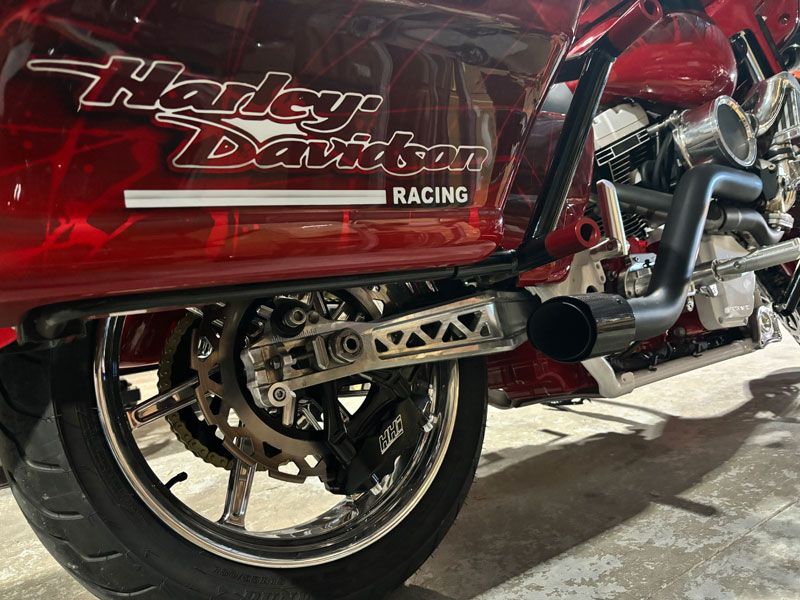

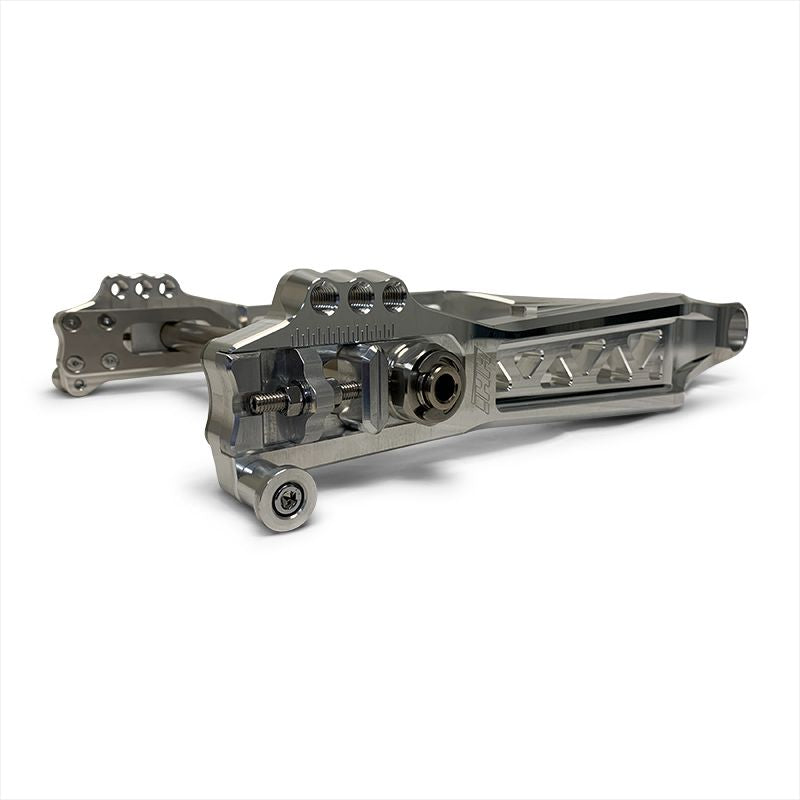

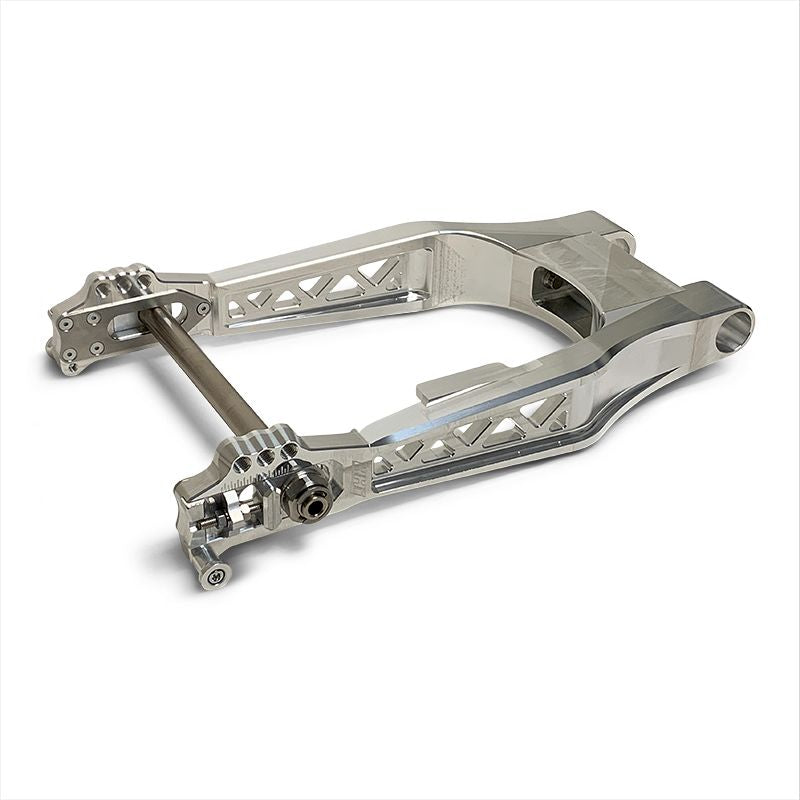

The HHI Swingarm reduces weight by over 20% compared to stock swingarm.

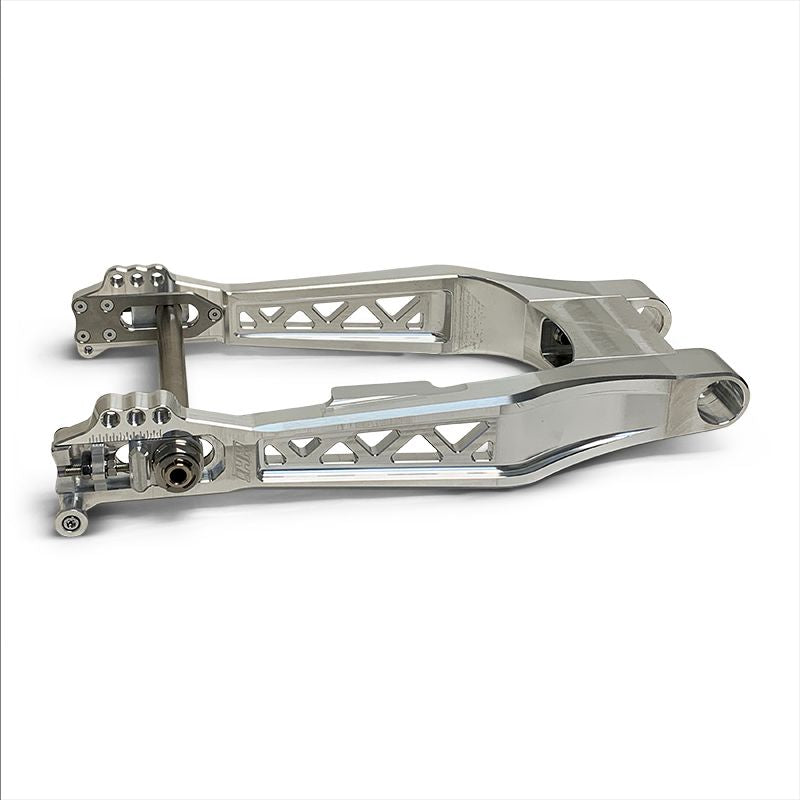

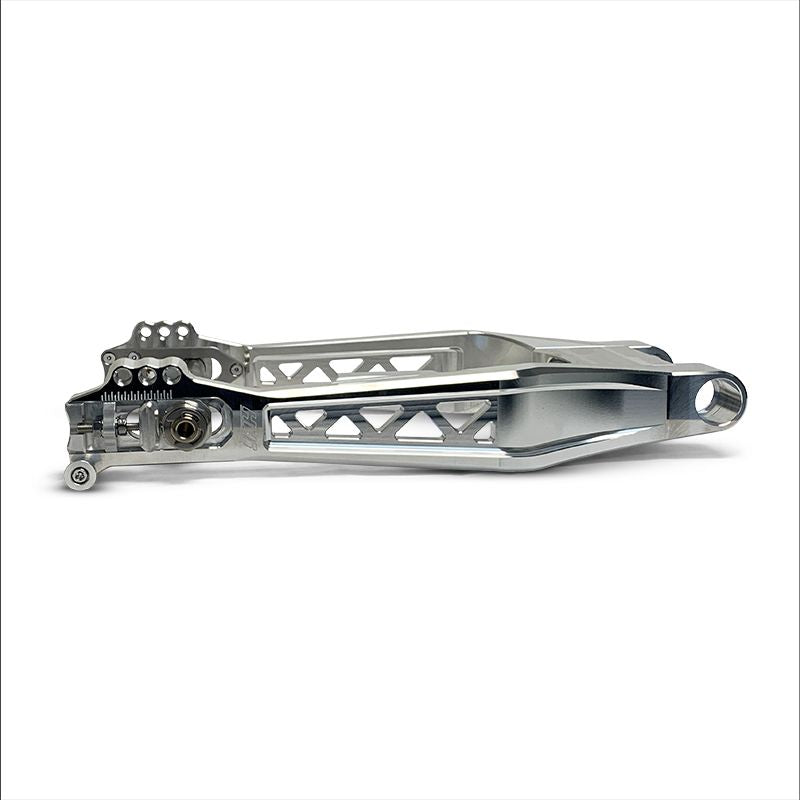

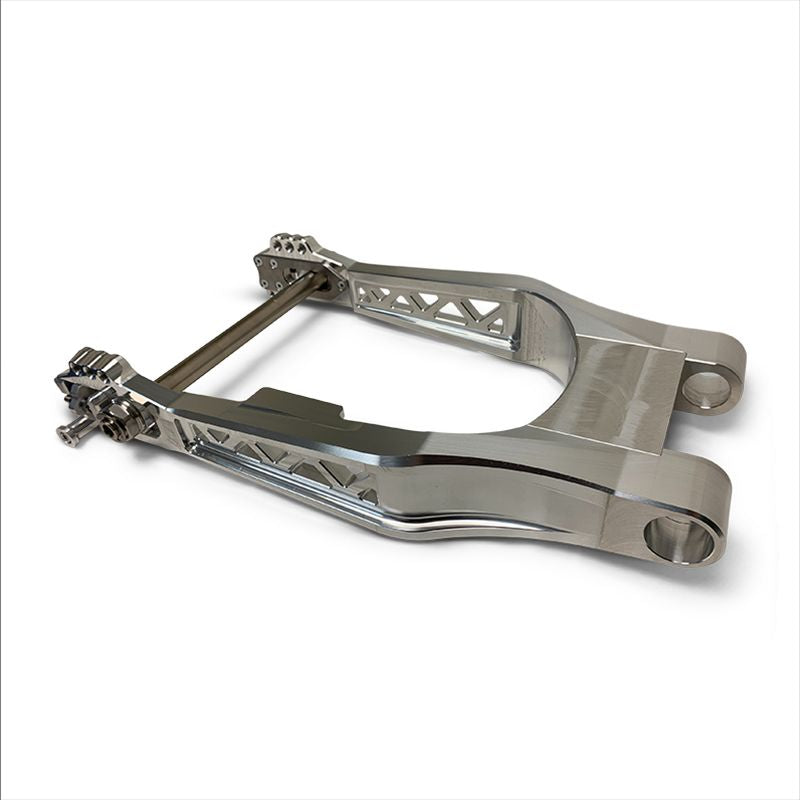

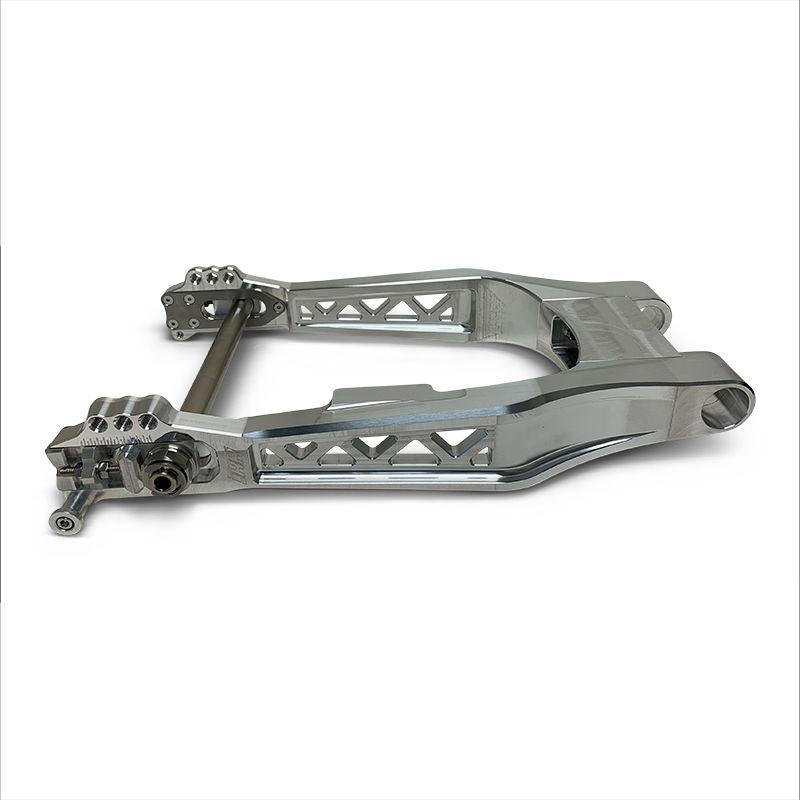

The Main Swingarm is a three-piece design utilizing a massive interlocking, hi-strength keying feature. Thermal shrink fit of this key provides precision alignment, maximum strength and permanent construction.
Assembled with four hi-strength ARP ½” diameter 12 point polished stainless steel large flange bolts.
Swingarm designed to work with shocks ranging in length from 10" to 16".
Positive lock adjustable position axle locator system delivers 2 inches of full axle slot adjustment (2.5x greater than stock).
Keyed axle locator plate eases axle installation.
HHI Exclusive stainless steel inner swingarm axle protector plates allow for maximum axle installation torque.
Protector plates prevent damage to swingarm billet inside faces and promotes positive axle position.
Multi-point shock mount system that adjusts from stock to +1/2 inch ride height.
Fits most shock brands without adding offset spacing and longer bolts.
Extreme strength lightweight Chromoly hollow axle made from 150ksi heat treated medium carbon steel alloy.
Precision machined for close tolerance fit and Nickel Plated for long lasting durability.
Includes custom machined Stainless Steel 36mm hex axle nuts.
Stainless steel stock type axle nut retaining clips supplied.
Integral brake mount designed for stock caliper and brake line

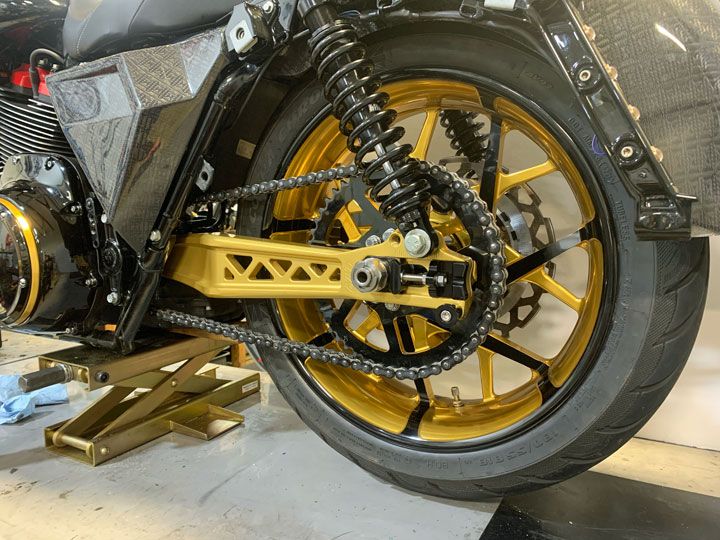

Available in Black, Inca Gold, & Machine finish.
For further information and to order call 1-407-330-2056 or send an email to pushrod243@comcast.net
