Dakota Digital

Dakota Digital Black Direct Plug-In Digital Instrumentation System w/Black Face - MLX-8496-K

Dakota Digital Black Direct Plug-In Digital Instrumentation System w/Black Face - MLX-8496-K

Regular price $499.00 USD
Regular price $1,317.95 USD Sale price $499.00 USD
Sale Sold out
Shipping calculated at checkout.
  • Fitment: 1996-2003 Harley-Davidson Touring models

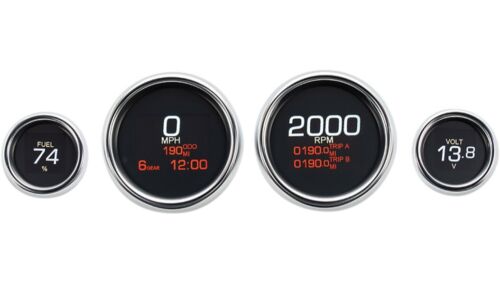

  • Four-gauge systems include a 3 3/8 in. speedometer and tach (MPH or km/H selectable) with odometer and dual trip meters, plus two fully programmable 2 1/16 in. gauges.
  • Display your choice of oil pressure, oil temperature (sensor included), voltage, and fuel level readings.
  • Additional system features include clock, gear position, 0-60 time, 1/4 mile time, 1/4 mile speed, 0-60 time plus and high speed and PRM recall.
  • Main gauges feature cruise engaged, security, check engine and ABS indicators.
  • The message centers below the speed and tach offer two lines of information to keep the rider informed.
  • Gauge displays automatically dim for comfortable night time riding and brighten to a high contrast mode for excellent visibility, even in direct sunlight.
  • The two small gauges can be programmed by the rider for their ideal layout.
  • Riders can choose from 31 illumination colors; independently select colors for main reading, message center information and gauge labels, or choose from 12 preset themes!
  • MBM expansion modules available mobile app for both Android and Apple iOS devices-access the setup and customization preferences with your smart phone or tablet.


SPEED - Programmable speed calibration, performance menu, two trip meters, odometer, count down service miles, hours running, miles to empty, security and check engine indicators

TACHOMETER - Programmable tach, clock, gear position, cruise control indicator, and high RPM recall

OIL PRESSURE - Programmable warning point, uses stock sensor or Dakota digital sensor for higher pressure

OIL TEMPERATURE - Programmable warning point , complete with new sensor

VOLTS - Programmable warning poing

FUEL LEVEL - Low fuel warning, uses factory sensor

AIR TEMPERATURE - Uses factory sensor

USER SELECTABLE READINGS IN EACH SMALL GAUGE - pick what you want displayed in each gauge, included MBM readings

NOTE: This gauge has an odometer preseet option that is only available for the first 100 miles (160km) of operation. See "preset odometer" on page 14 for instruction.

Included Items:

(2) Black large gauges W/black face

(2) Black small gauges W/black face

(2) Black plastic gauge mounts

(2) Gaskets

(4) #8-32 x 3/4" Pan head bolts

(1) Sensor connect wire harness

(1) Oil temperature sensor wiring harness

(1) Interconnect wiring harness

(1) Black wire W/(1) female spade connector

(1) Adapter box and wiring harness

(1) Oil temperature sensor

(9) 4mm-.70 Hex nuts

(14) Black cable ties


*This kit has been opened for display only - never plugged in or mounted to a motorcycle. No returns or exchanges on this product.
